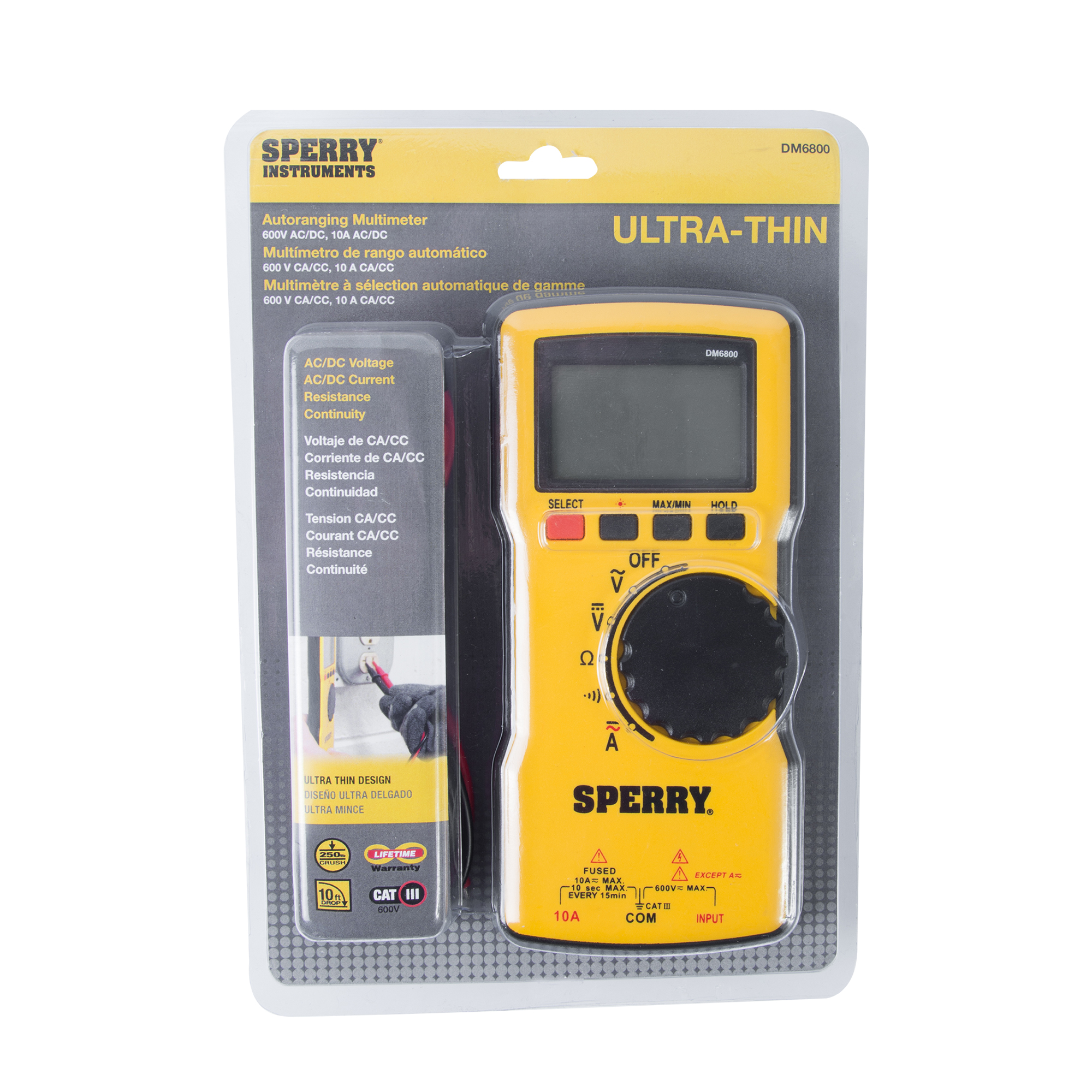

DM6800 Digital Multimeter, Thin, Autoranging, 600 V AC/DC, 10A Current, Continuity, Resistance

Part # DM6800

Engineered to exceed the expectations of the professional electrician the Sperry Instruments DM6800 Thin Digital Multimeter offers a durable and More...

WHERE TO BUY
Out of Package Height (in) 6.93
Out of Package Width (in) 0.68
Out of Package Length/Depth (in) 3.18
Out of Package Weight (oz) 6.784
Each in Package Height (in) * 1.8
Each in Package Width (in) * 6.4
Each in Package Length/Depth (in) * 9.3
Each in Package Weight (lbs) * 0.85
Inner Pack Weight (lbs) * 2.4

Engineered to exceed the expectations of the professional electrician the Sperry Instruments DM6800 Thin Digital Multimeter offers a durable and ergonomic impact resistant design manufactured to the latest industry standards. At less than 3/4 inch thick, this is the thinnest full sized multimeter yet. Engineered with the ability to test AC/DC voltage, amperage, resistance, and continuity. Featuring improved audible and visual indicators, and a backlit display. Requires 2 AAA batteries included in the package and designed with both an auto-off function to save battery life and a low battery indicator to ensure the user does not receive incorrect readings due to a low battery. Unit utilizes auto ranging capabilities that allow the meter to determine the resolution based on the application selected without requiring manual range changes. Capable of testing 600V AC/DC, this unit also measures AC/DC amps (10A), resistance (200, 2k, 20k, 200k, 2M, 20M Ohm) and continuity (audible). Durable housing is impact resistant. CAT III (600V), cETLus and CE rated with a limited lifetime warranty to give our users the peace of mind they deserve. Ships with soft case, 40" CAT II/III 600V test leads and 2 AAA batteries included in the package.

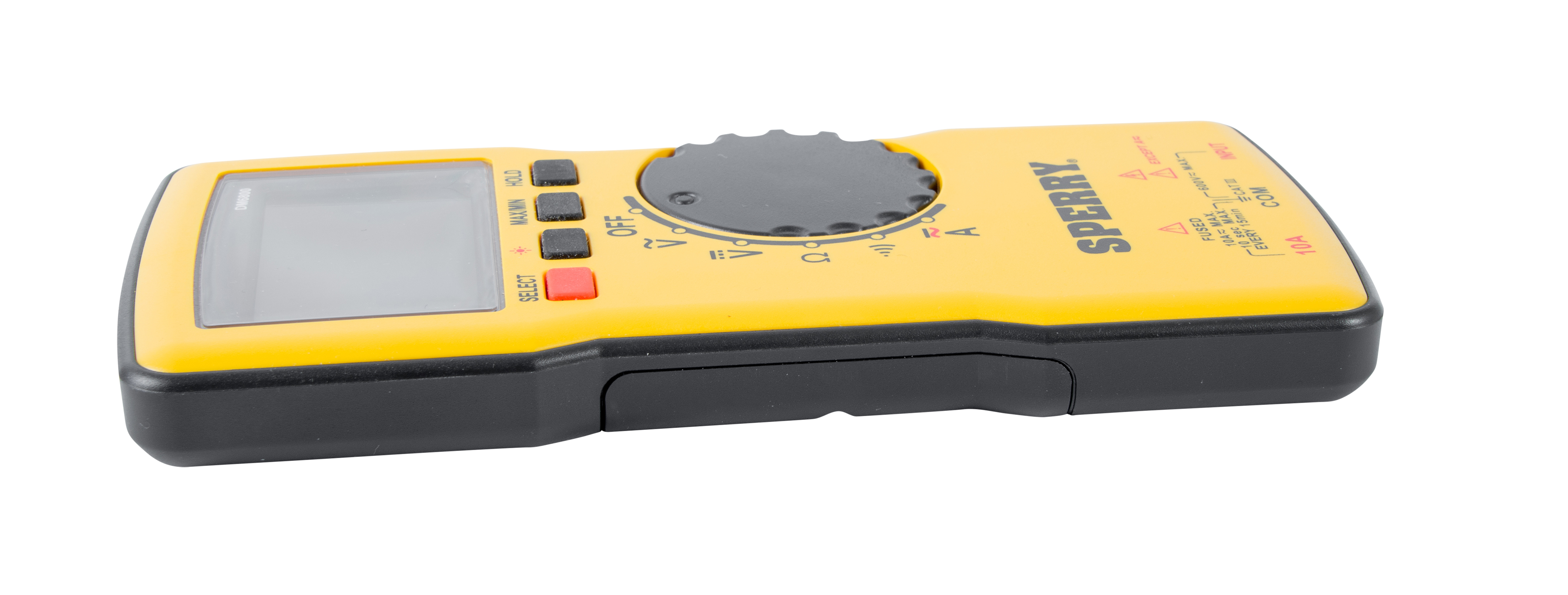

  • Thin design - less than 3/4" thick

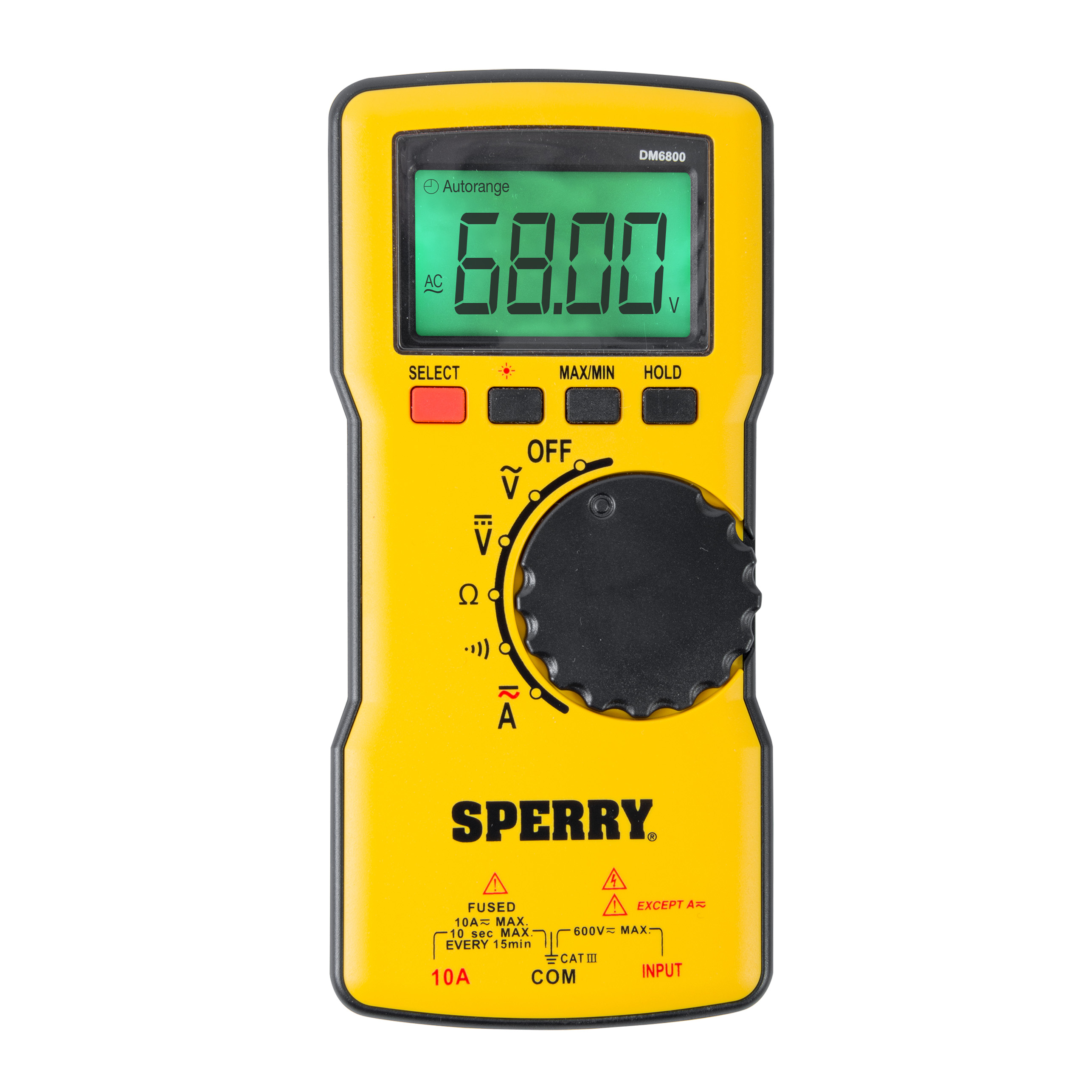

  • Features autoranging, backlit display, data hold function, min/max function, and auto off function
  • 10 ft drop rating, 250lb crush rating
  • Lifetime warranty
  • CAT III 600V rating

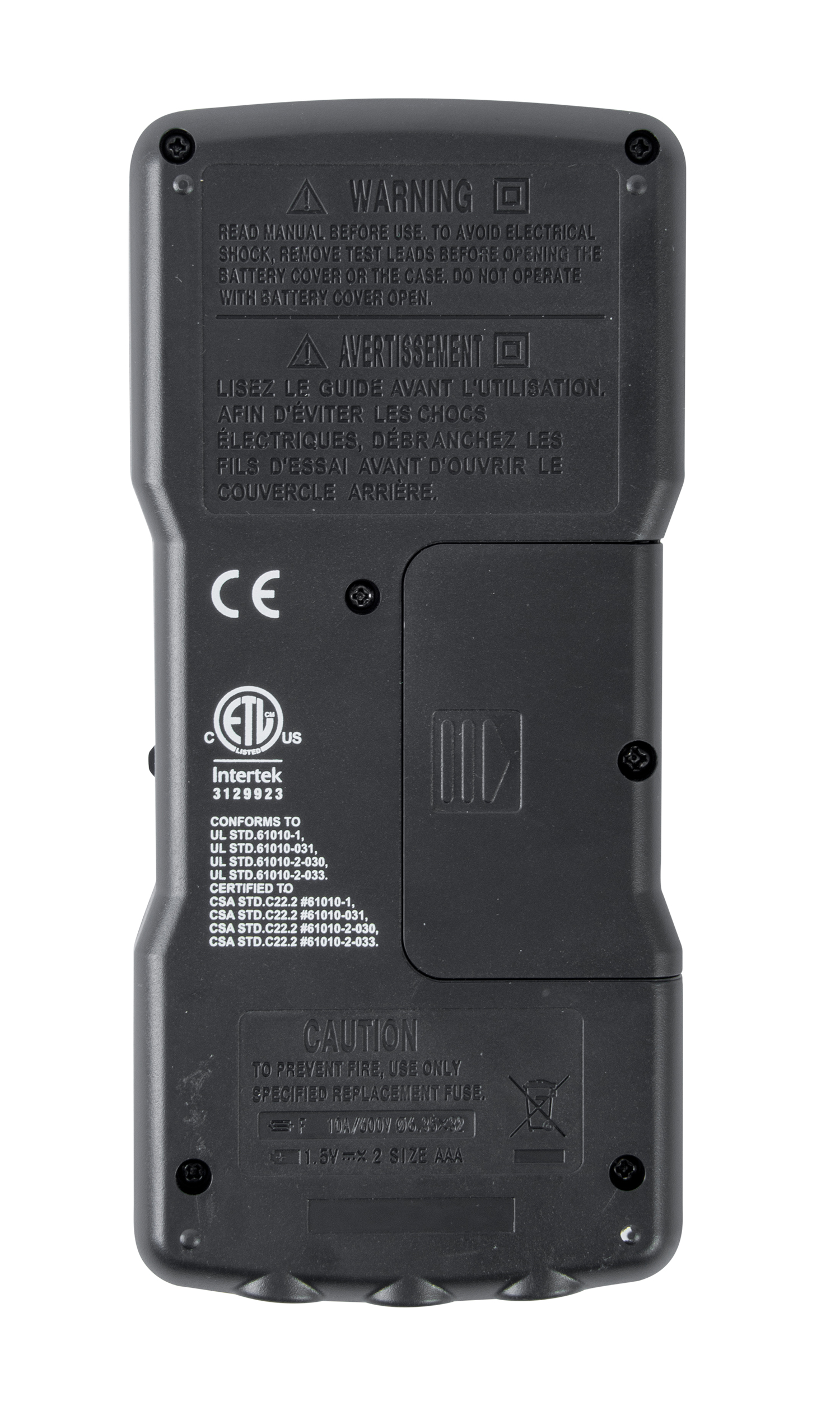

  • cETLus listed

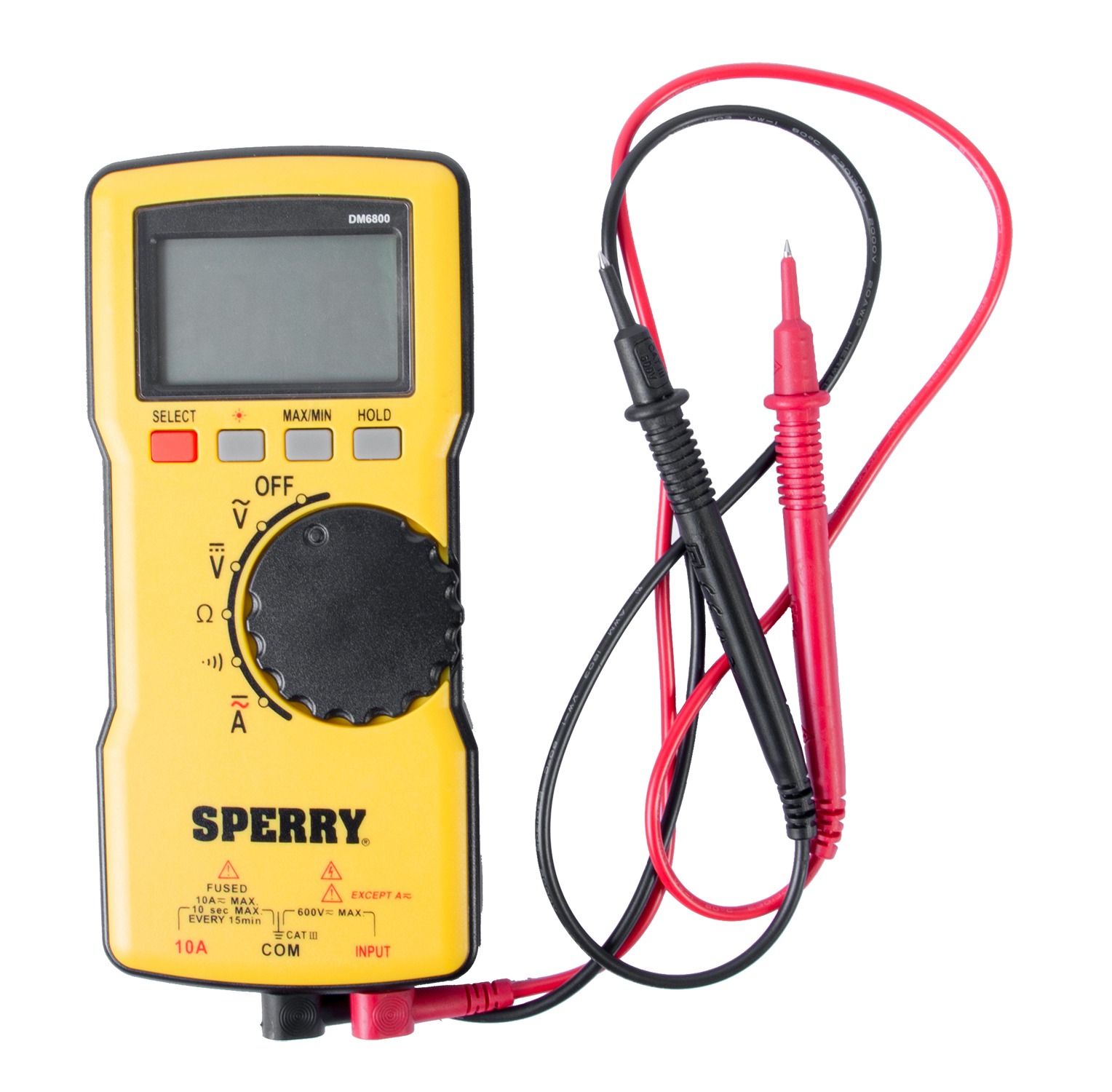

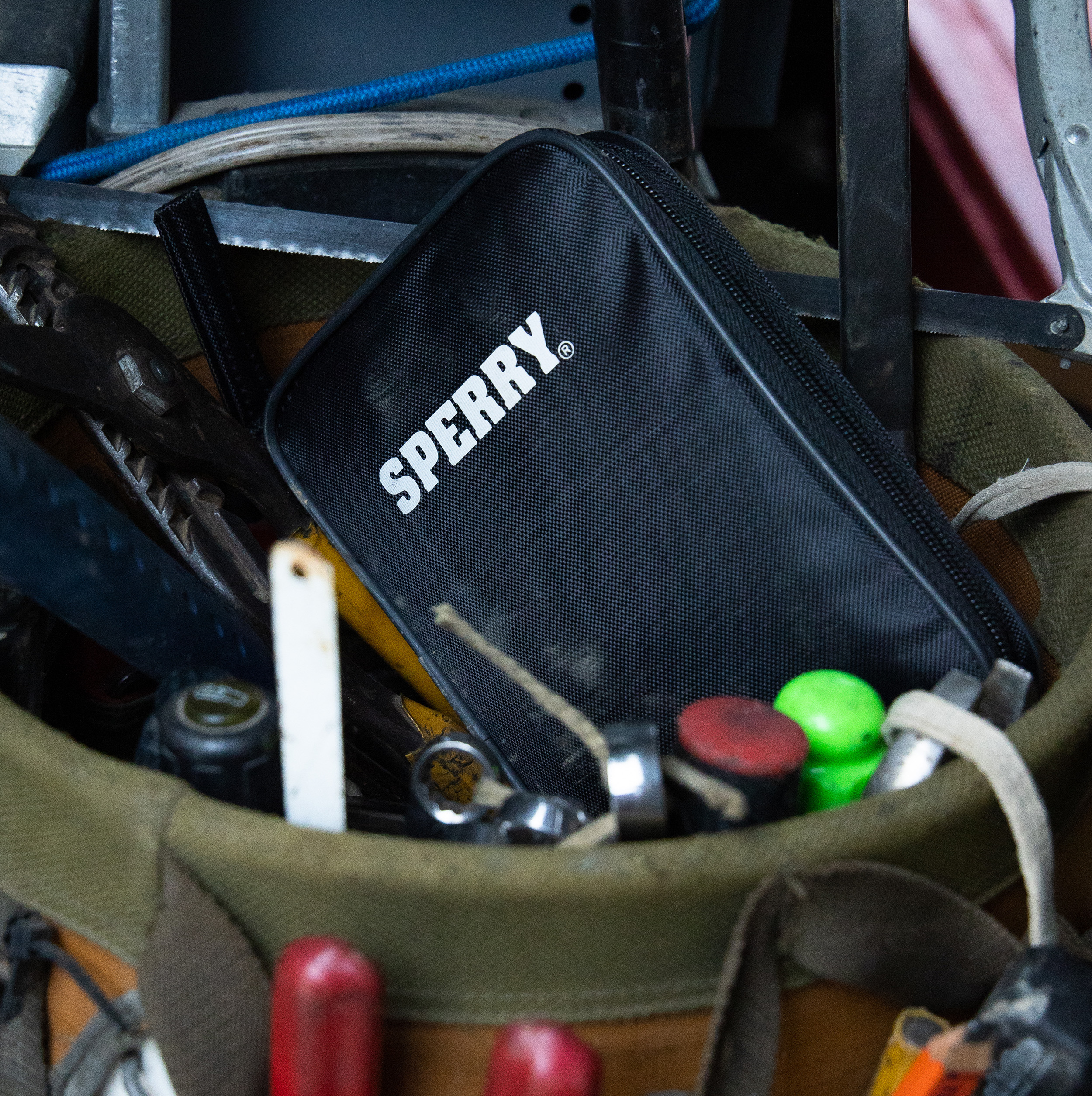

  • Ships with soft case, 40" CAT II/III 600V test leads and 2 AAA batteries
  • Requires (2) AAA batteries, included
  • Measure AC/DC voltage, AC current, resistance, continuity

Warranty Limited Lifetime
