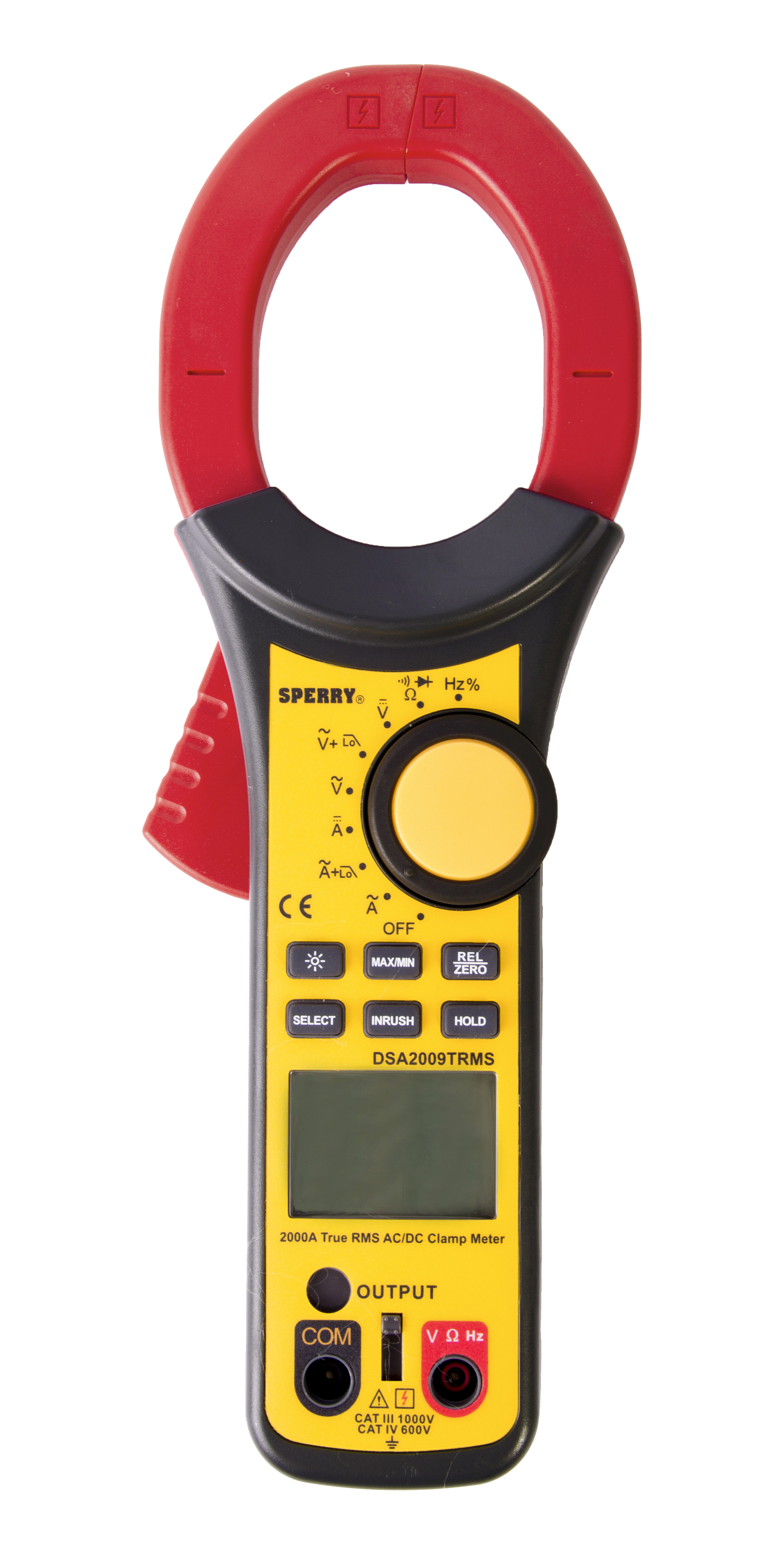

True RMS 6 Function Digisnap Digital Snap-Around

Part # DSA2009TRMS

Like digital multi-meters, clamp meters have a large range of functions and include LCD screens to display results. Unlike their DMM counterparts, More...

WHERE TO BUY
Out of Package Height (in) 11.75
Out of Package Width (in) 4
Out of Package Length/Depth (in) 1.85
Each in Package Height (in) * 1.2
Each in Package Width (in) * 8.9
Each in Package Length/Depth (in) * 14.9
Each in Package Weight (lbs) * 2.25
Inner Pack Weight (lbs) * 15.2
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

Like digital multi-meters, clamp meters have a large range of functions and include LCD screens to display results. Unlike their DMM counterparts, clamp meters have the unique ability to measure current without having to contact live conductors. Engineered to exceed the expectations of the professional electrician, the DSA2009TRMS features True RMS circuitry and measurement of up to 2000 Amp AC/DC. Features low pass filtering, Inrush current, oscilloscope output and a backlit display with bar graph to meet the toughest jobs head on. CAT IV 600-Volt rated with a lifetime warranty to ensure safety and reliability in the field.

  • Enhanced True RMS circuitry
  • 2000 Amp AC/DC
  • Low pass AC filtering

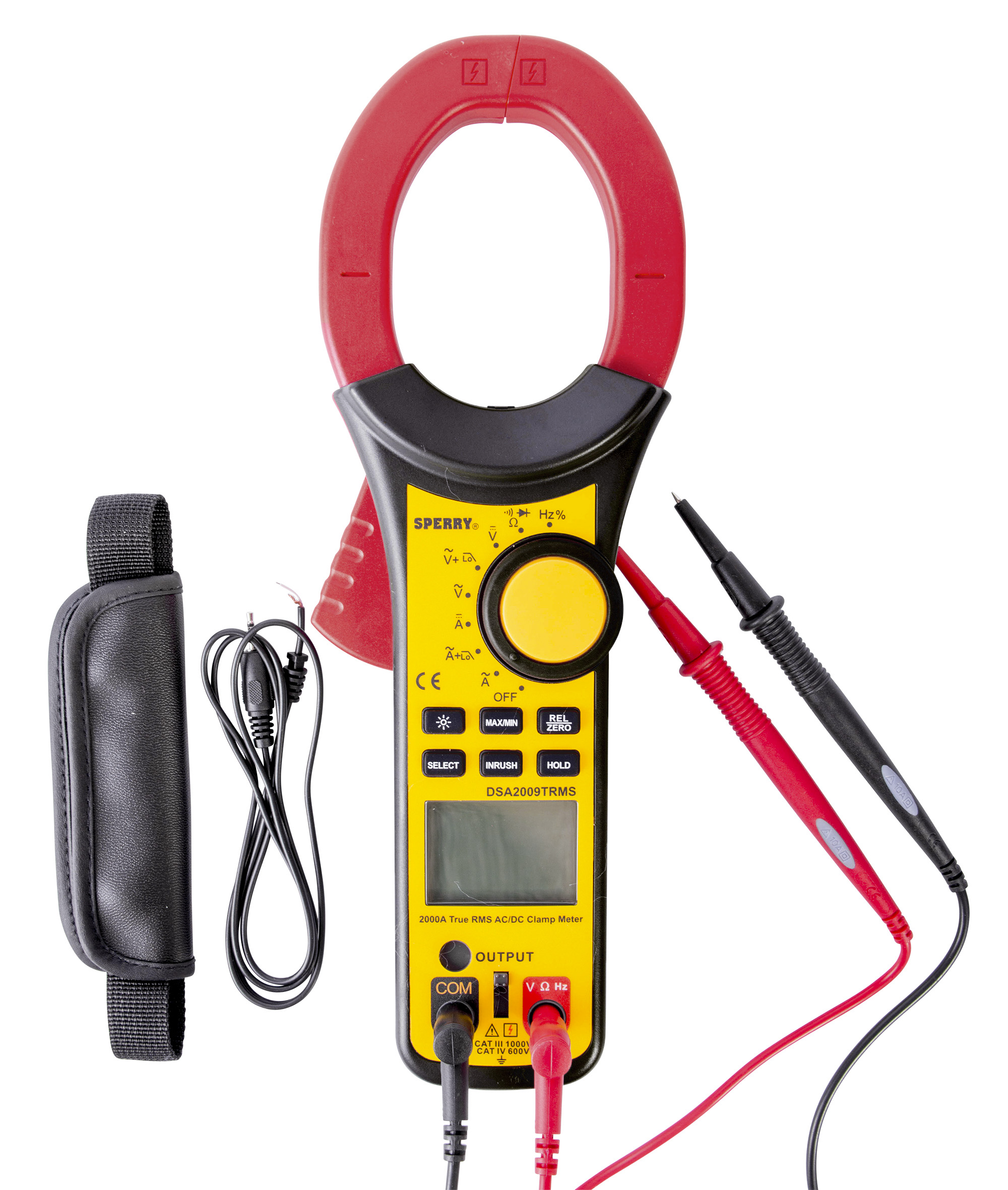

  • Includes convenient wrist strap
  • Data hold capability to maintain reading on display
  • Peak hold function to display in-rush current
  • Operates from one 9 volt battery

Warranty Limited Lifetime
