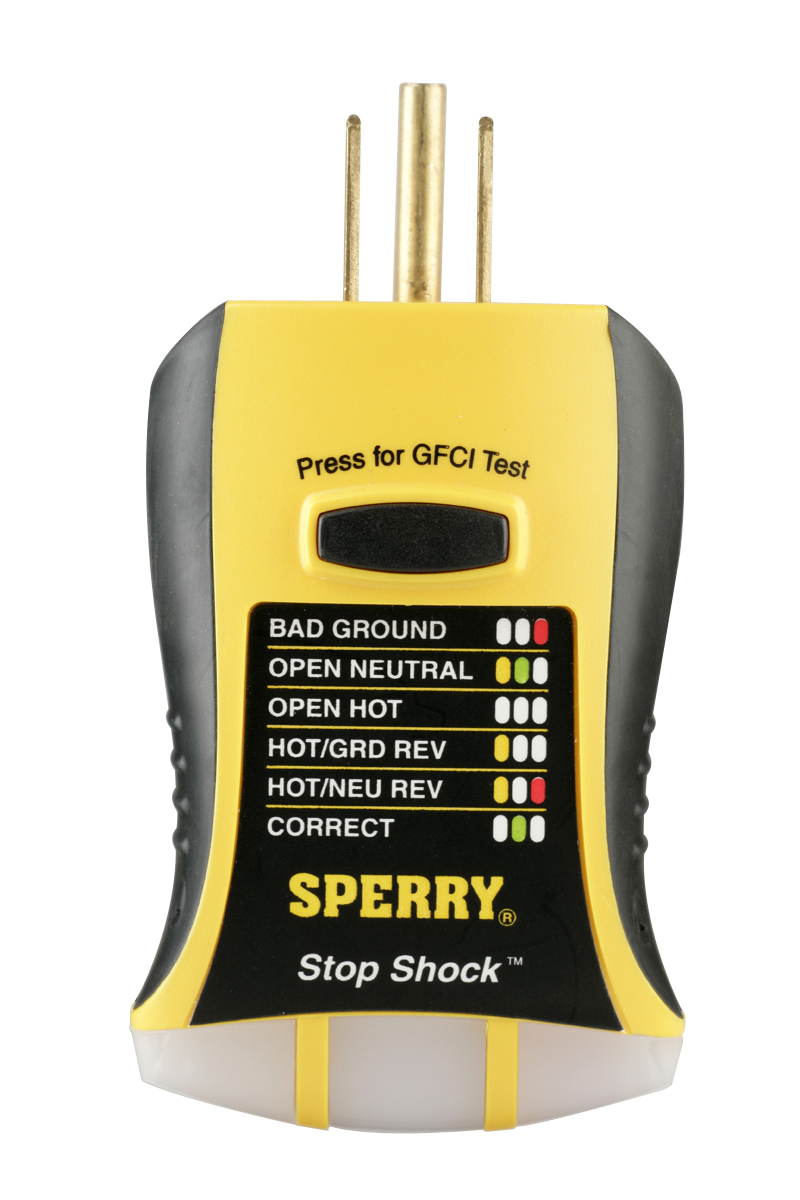

Sperry Instruments HGT6120 Stop Shock GFCI Receptacle Tester with Circuit-Ground Analyzer, Tests 3-wire and GFCI 120V outlets for 5 Errors, 1/Each

Part # HGT6120

The Stop Shock is more than a mere 3-wire outlet tester with GFCI test functionality. Designed to test standard 3-wire and GFCI protected 120V outlets More...

WHERE TO BUY
Out of Package Height (in) 3.25
Out of Package Width (in) 1
Out of Package Length/Depth (in) 2
Each in Package Height (in) * 2
Each in Package Width (in) * 3.75
Each in Package Length/Depth (in) * 6.75
Each in Package Weight (lbs) * 4
Inner Pack Weight (lbs) * 22.11
RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Color Yellow

The Stop Shock is more than a mere 3-wire outlet tester with GFCI test functionality. Designed to test standard 3-wire and GFCI protected 120V outlets the Stop Shock features advanced circuitry capable of detecting hazardous ground conditions not identified by standard outlet testers. Beyond the verification of correctly wired outlets, this unique tool ensures that the ground path does not have too much resistance. If the ground resistance is greater than 10 ohms, this unit provides a bright red visual illumination to warn the user of a bad ground at the outlet. Improper ground paths cause multiple hazardous conditions including, but not limited to, the failure of a breaker to trip in a hazardous condition, energized metal housing, and many other hazardous conditions. The unit tests for 7 wiring conditions and the legend is clearly printed on both the top and bottom of the tester for 360 degree viewing. Designed for user comfort and durability on the jobsite, this tester offers comfortable rubber over-molded grips and features a 10 foot drop, 250 pound crush, and CAT III 300V rating. CULus and CE approved, this unit includes a limited lifetime warranty. Durability, comfort, an integrated GFCI test functionality and ground resistance protection all combine to make this tester the tool of choice for inspectors and electrical professionals.

  • Tests standard 3-wire and GFCI protected 120V outlets
  • Advanced circuitry detects hazardous ground conditions not identified by standard outlet testers
  • Three color LED's indicate 7 common wiring conditions
  • Wiring condition legend listed on both top and bottom of tester
  • GFCI function tests GFCI and standard outlets wired in series with GFCI outlets (eg. multiple outlets in kitchen or bath)
  • Ergonomic design with over-molded rubber grips for user comfort during repetitive workday

Warranty Limited Lifetime
